Standalone Radars
Standalone radars are independent radar systems used on vessels for navigation and collision avoidance without requiring integration into a larger bridge system. These radars operate on their own dedicated display and controls, making them ideal for smaller vessels or as backup units on larger ships. They typically use X-band or S-band frequencies to detect objects, landmasses, and other vessels, providing range, bearing, and relative motion information. Modern standalone radars often include features such as Automatic Radar Plotting Aid (ARPA), target tracking, and overlays for AIS data. They are valued for their simplicity, reliability, and ease of installation, offering essential situational awareness even when integrated systems fail.

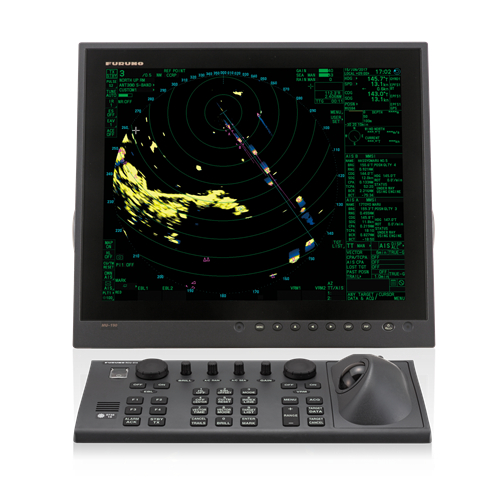

Furuno FAR2XX8
The Furuno FAR-2xx8 series is a high-performance marine radar system designed for large vessels and fully compliant with IMO standards. It includes both X-band and S-band models, available in magnetron and solid-state configurations. Key models include FAR-2218 (X-band, 12 kW), FAR-2228 (X-band, 25 kW), FAR-2228-NXT (X-band, 600 W solid-state), FAR-2238S (S-band, 30 kW), and FAR-2238S-NXT (S-band, 250 W solid-state).
This series incorporates advanced technologies for enhanced navigation safety, such as Automatic Clutter Elimination (ACE) for clear radar images, Fast Target Tracking™ for rapid acquisition of speed and course vectors, and Risk Visualizer™ to highlight potential collision zones. Solid-state models use Doppler technology for improved target detection and identification. The aerodynamic antenna design with a brushless motor reduces maintenance and improves durability, while signal processing occurs directly in the antenna unit for sharper radar images. Connectivity is via Ethernet, and the system supports interswitching with other Furuno radar series.
Additional features include Target Analyzer™ for distinguishing moving targets in cluttered conditions, InstantAccess Bar™ for quick function access, and compliance with IEC standards such as IEC 60945 and IEC 62388. These radars can operate as standalone units or integrate into Furuno’s Voyager INS for multifunction display setups, offering flexibility for different vessel categories.
